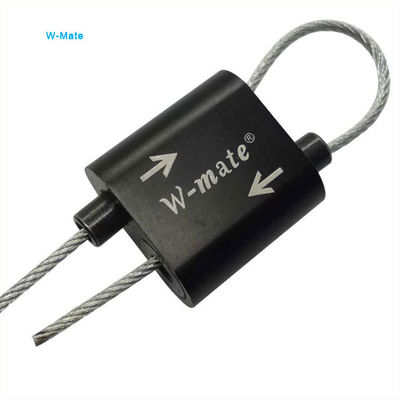

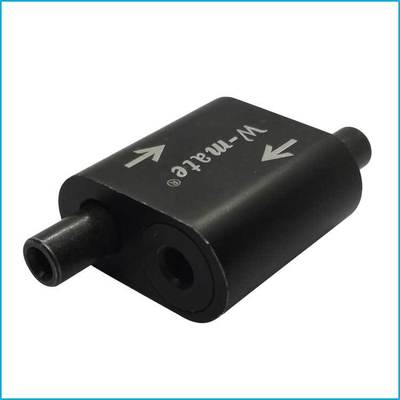

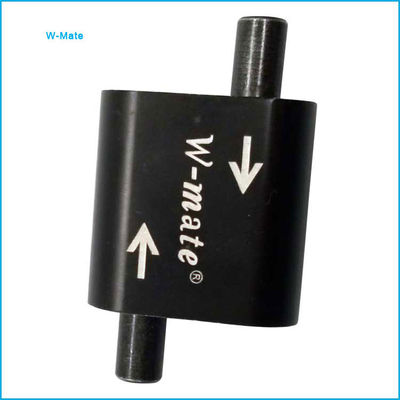

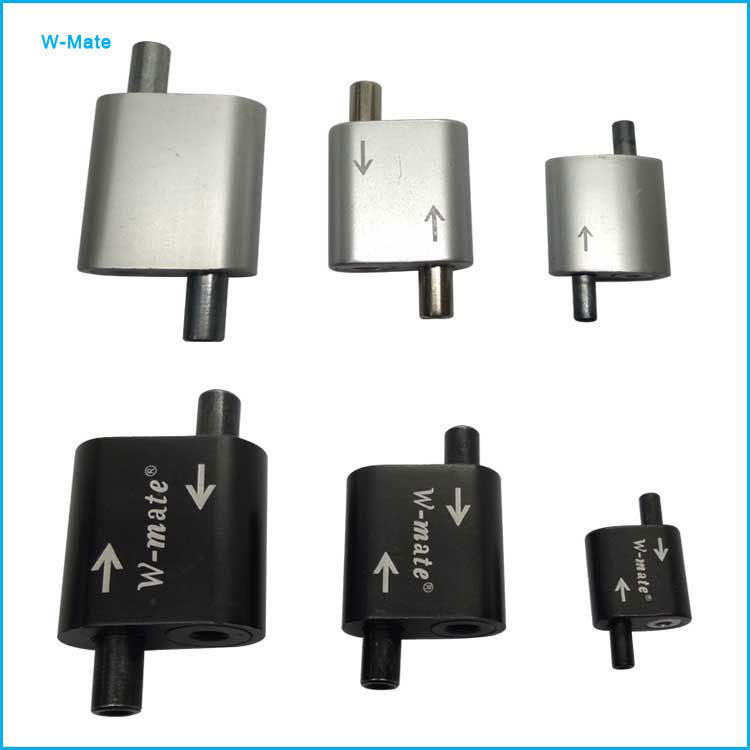

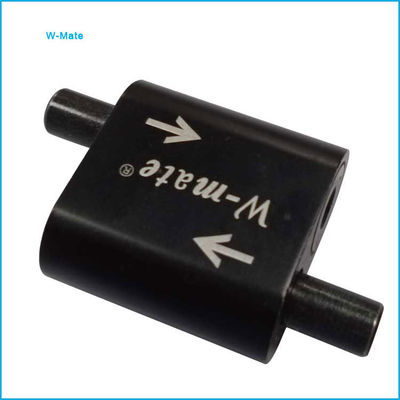

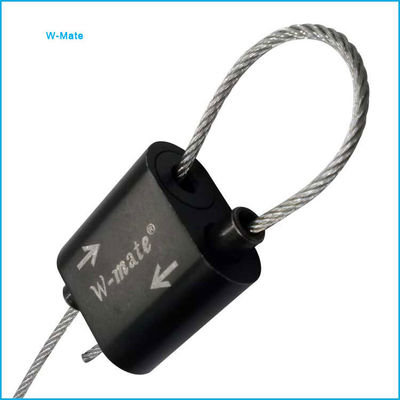

M12 Black Self Gripping Cable Looping Gripper with 1*7 and 1*19 Steel Wire Rope
Szczegóły Produktu:
| Miejsce pochodzenia: | Guangdong, Chiny |
| Nazwa handlowa: | W-mate |
| Orzecznictwo: | ROHS |
| Numer modelu: | Zmiennik kablowy |
Zapłata:
| Minimalne zamówienie: | 100 |
|---|---|
| Cena: | $0.80-0.85 |
|
Szczegóły informacji |
|||
| Tworzywo: | Miedź mosiądz | Typ: | Klips do liny |
|---|---|---|---|
| Kolor: | Nikiel/Chrom/Czarny/Biały | Budowa kabli: | 1*7,7*7,1*19,7*19 |
| Długość gwintu: | 10,00 mm | Średnica kabla: | 0,8 MM do 1,2 MM |
| Bezpieczne obciążenie robocze: | 15,00 kg | Mini obciążenie niszczące: | 12,5 kg do 500 kg |
| Rozmiar (dł. * szer. * wys.): | 15*15*8,5 do 42*42*22 | MOQ: | 100 szt |
| Dostępność próbek: | Dostarcz próbkę | Personalizacja: | Materiał, kolor, wymiar |
| Czas realizacji: | 15 dni | Metody wysyłki: | Ekspres, fracht morski, agent |
| wadliwa ocena: | mniej niż 0,2% | ||
| Podkreślić: | M12 Cable Looping Gripper,1*7 Steel Wire Rope,1*19 Looping Gripper |
||
opis produktu
Black Loop Maker Self Gripping Adjustable M12 Double Sides Steel Wire Rope Cable Looping Gripper Aluminum
Technical Specifications
| Cable Diameter | Mini Breaking Load | Safe Work Load | Size (L*W*H) |
|---|---|---|---|
| φ0.8mm | 12.5kg | 2.5kg | 15*15*8.5 |
| φ1.0mm | 50kg | 10kg | |
| φ1.2mm | 80kg | 16kg | 20*18*10 |
| φ1.5mm | 130kg | 26kg | |
| φ1.8mm | 180kg | 36kg | 25*25*12 |
| φ2.0mm | 200kg | 40kg | |
| φ2.5mm | 300kg | 60kg | 30*30*15 |
| φ3.0mm | 400kg | 80kg | |
| φ4.0mm | 450kg | 90kg | 42*42*22 |
| φ5.0mm | 500kg | 100kg |
Frequently Asked Questions
Why choose our products?
- Excellent R&D capability with advanced processing and testing equipment (40+ machines including cutting, welding, and casting machines)
- Comprehensive inspection equipment
- Customizable specifications including material, color, and dimensions
- Professional QA team
- Superior after-sales services
How do we design ceiling suspension cables/kits?
We consider multiple factors including workload, safety, abrasion resistance, environment, cycle life, flexibility, and cost when designing ceiling suspension cables/kits based on your specific application requirements.
Quality and cost control
We implement four-stage inspections before and after production, with complete QC inspection processes and solutions to ensure quality while controlling costs.
How to place an order?
Please provide complete specifications including: Material, Diameter, Construction, Coating, Length, Packing, Quantity, and any special Remarks.
Production lead time
Standard lead time is 15 days, depending on order size. We can expedite urgent orders upon request.
Shipping methods and timelines
- Express (DHL, UPS, TNT, FEDEX): 3-5 days delivery
- Sea Freight: We will provide quotes based on your destination port
- Client-designated agent: Provide contact details and we'll arrange delivery
Quality guarantee and defective products
Our strict quality control maintains a defective rate below 0.2%. During the guarantee period, we replace small quantities with new orders. For defective batches, we repair and resend or discuss recall solutions as needed.
